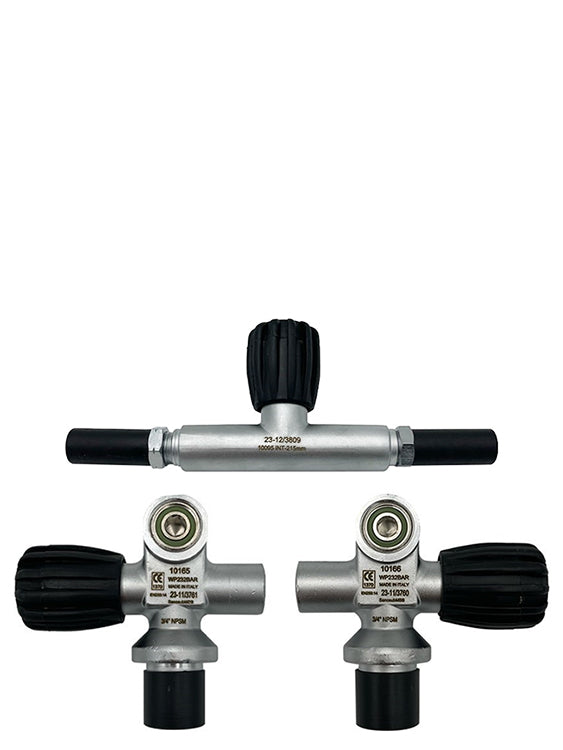

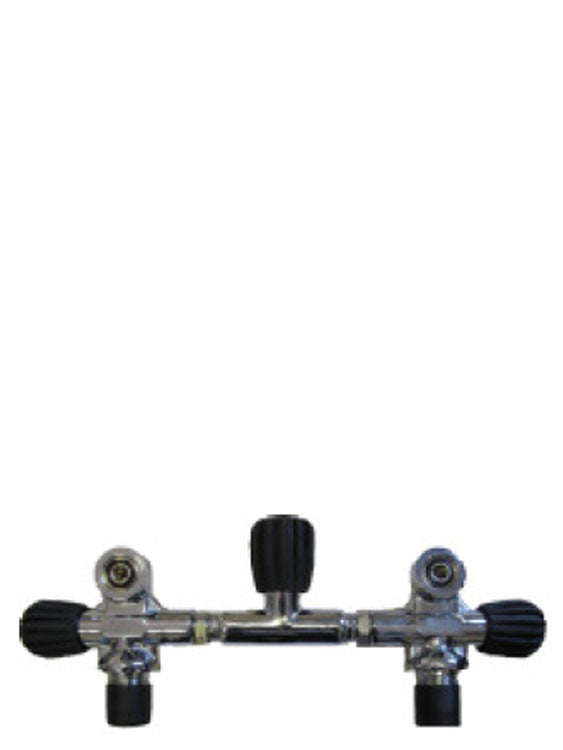

Sanosub manifolds are the standard manifolds that come with most Faber steel twin sets in Australia. The manifold system is made up from two Sanosub DIN/K manifold valves (one LHS and one RHS) and an isolation bar.

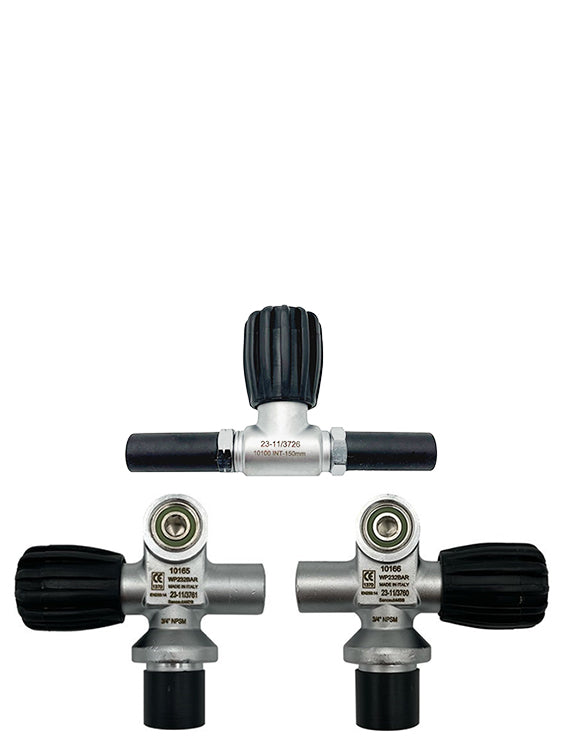

The isolation bar is available in two different lengths 150mm (5.9") and 212mm (8.4"). Generally speaking (depending on which tank bands you use), the 150mm bar is meant for 5L and 7L Faber tanks and the 212mm is for 9L, 10.5L, 12.2L, 15L & 18L Faber tanks.
Please note: tank bands for 9L, 10.5L and 12.2L now have wider spacing, making the manifold size for these cylinders and the 15L and 18L Faber tanks the same width. Previously, there were 3 sizes of manifolds, because the beforementioned cylinders used bands with less spacing. These bands and this size manifolds are not available anymore.
This manifold is the most durable on the market and are the manifold of choice of technical divers around Australia.
Both valves come with an insert, so they can be used with yoke regulators. This threaded insert can easily be removed with an allen key so the valves can be used with DIN regulators.
The valve thread is 3/4" NPSM and will fit most scuba tanks bougth in Australia.

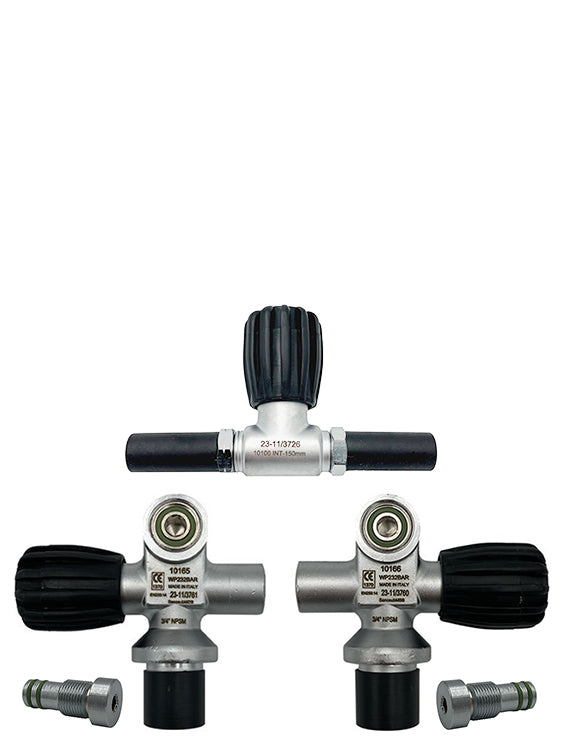

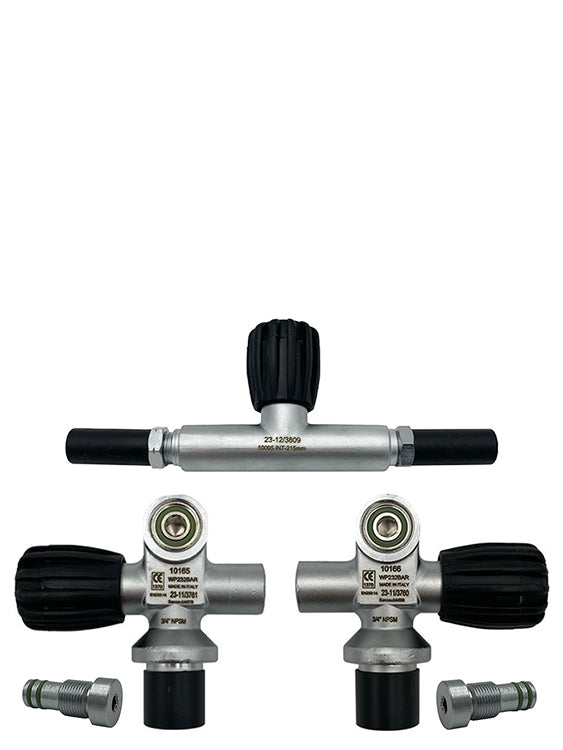

Optional: If you would like to be able to use the valves independently as well, you will need a blanking plug for each valve.
WARNING: Please always confirm the thread of your tank before ordering. When in doubt, please ring or email us!
