• San-o-Sub 300Bar DIN Manifold Complete

San-o-Sub 300Bar DIN Manifold Complete

$229.00 $290.00

Width (of the centre bar)
Add 2 blanking plugs (+$19)?
Burst Discs
Quantity

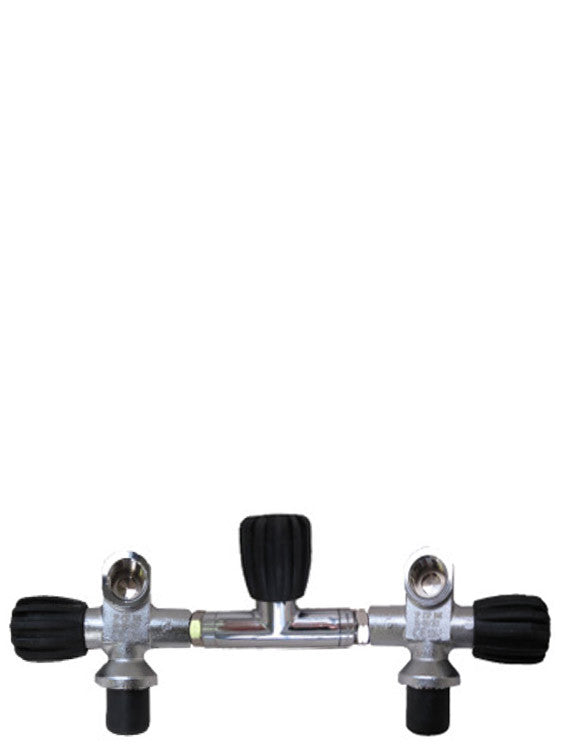

The Sanosub high pressure (HP) DIN manifolds come with a left hand side and right hand side high pressure manifold valve and an isolation manifold bar. This manifold is meant for high pressure tanks (300 bar) tanks and has the standard 3/4" NPSM thread that will fit most tanks bought in Australia.

Like the standard manifold, the HP manifold comes in three different lengths: 150mm (5.9"), 192mm (7.6") and 212mm (8.4"). Generally speaking (depending on which tank bands you use), the 150mm bar is meant for 5L and 7L Faber tanks, the 192mm for 9L, 10.5L and 12.2L Faber tanks and the 212mm for 15L and 18L Faber tanks.

These valves are DIN only and don't have yoke inserts.

Optional: If you would like to be able to use the valves independently as well, you will need a blanking plug for each valve.

WARNING: Please always confirm the thread of your tank before ordering. When in doubt, please ring or email us!
